| Technical Specifications | R1400 |
| Radar | 1 Navigation LiDAR + 2 Obstacle Avoidance LiDAR |
| External dimensions L*W*H | 2450*1450*2476mm |
| Working road width | 3300mm |
| Lifting height | 5750mm |
| Fork face height above ground | 60mm |
| Self-weight | 3200kg |
| Load capacity | 1400kg |
| Travel speed | 1.2 m/s |
| Fork Tine Dimensions l/e/s * | 1150*100*45mm |
| Fork Tip Obstacle Avoidance | Equipped |
| Spatial obstacle avoidance | Equipped |
| Pallet Identification | Equipped |
| Adaptable pallet | Chuan-style /nine leg pallet |
| Fork outer width | 680mm(316-710) |
| Positioning accuracy | ±15mm/±1° |
| Battery type | Lithium iron phosphate |
| Capacity/Rated Voltage | 300Ah/48V |
| Charging time | ≦1.5H |
| Battery life | 6-8 hours |
| Multiple safety features | Emergency stop button, safety bumper, audible and visual warning signals |
| obstacle-crossing capability | 3%/5% (at full load/no load) |
| Communication | Support WiFi and seamless roaming；5G optional |

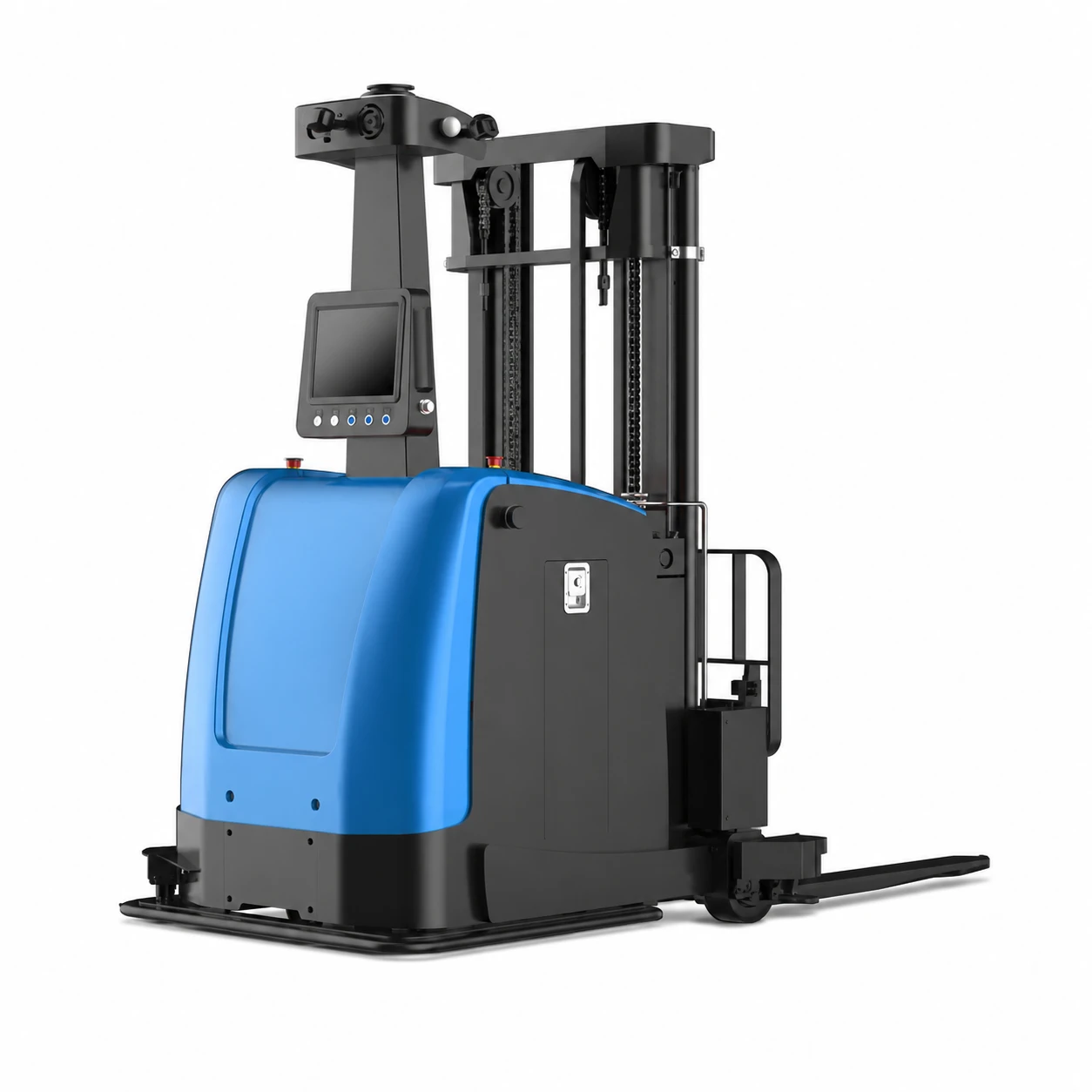

R1400 Reach Truck Robot
Designed for high-bay warehousing and pallet stacking applications, the R1400 Reach Truck Robot combines a 1,400 kg payload capacity with a 5,750 mm lifting height to automate pallet storage and retrieval in modern warehouses. Its reach truck design enables efficient operation in narrow warehouse aisles while maximizing storage density and vertical space utilization.
Equipped with Laser SLAM navigation, intelligent pallet recognition, precision positioning, obstacle detection, and comprehensive industrial safety protection, the R1400 delivers safe, accurate, and reliable pallet handling for warehouses, distribution centers, and manufacturing facilities seeking higher productivity and fully automated intralogistics.
