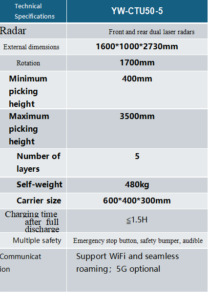

| Technical Specifications | CTU-50 |
| Radar | Front and rear dual laser radars |
| External dimensions | 1600*1000*2730mm |
| Rotation diameter | 1700mm |
| Minimum picking height | 400mm |
| Maximum picking height | 3500mm |
| Number of layers | 5 |
| Self-weight | 480kg |
| Load capacity | 50kg/tote load capacity |

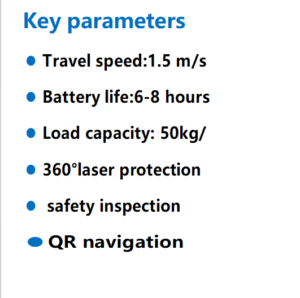

| Travel speed | 1.5 m/s |
| Carrier size | 600*400*300mm |
| Charging time after full discharge | ≦1.5H |
| Battery life | 6-8 hours |
| Multiple safety features | Emergency stop button, safety bumper, audible and visual warning signals |
| Communication | Support WiFi and seamless roaming；5G optional |
CTU-50
This Cargo Tracking and Uploading Robot is an intelligent logistics automation solution designed to streamline warehouse operations. It delivers exceptional efficiency, safety, and flexibility for modern warehouses.With a 50kg load capacity, adjustable picking height (400mm-3500mm), and 5-layer carrier design, it adapts to diverse warehouse storage scenarios and cargo types.
